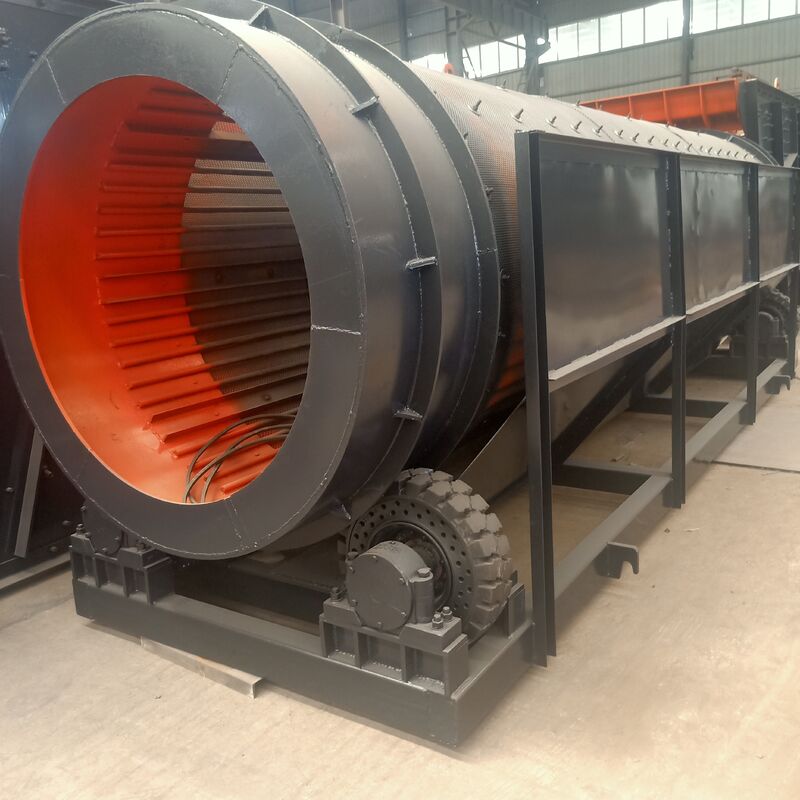

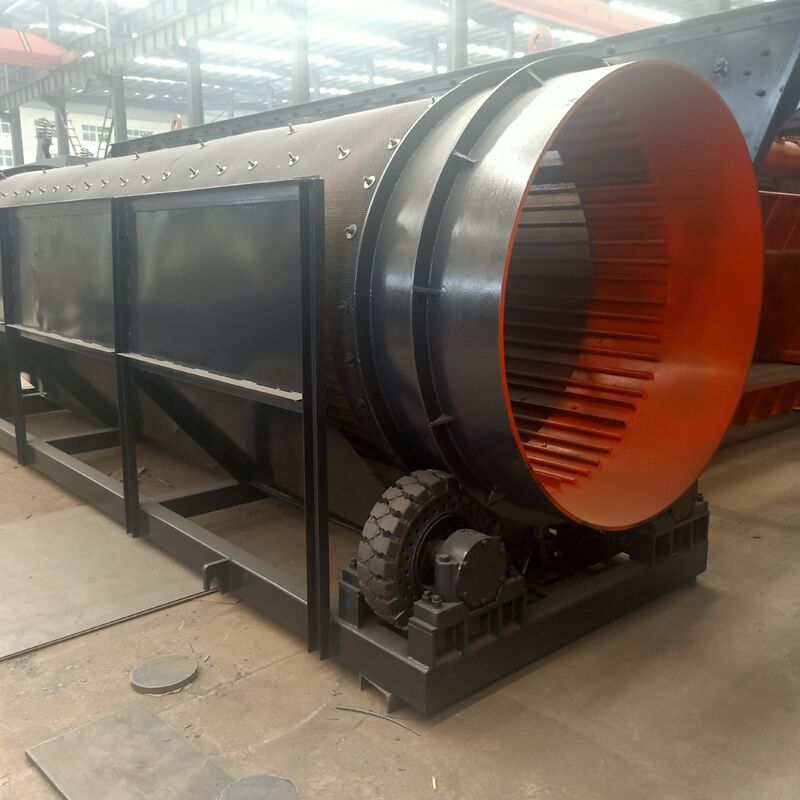

Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: TTS-serie
Price: 33,850.00 USD
Availability: InStock

Thuis > producten > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

Plaats van herkomst:

China

Merknaam:

hengyang

Certificering:

ISO9001

Modelnummer:

TTS-serie

Neem contact met ons op

Vraag een offerte

Productgegevens

Kleur:

Pas aan

Sollicitatie:

Wassen en scheiden

Materiaal:

staal

Capaciteit:

50-400t/h

OEM:

accepteren

Betaling en verzendvoorwaarden

Min. bestelaantal

Prijs

12000-55700USD/set

Verpakking Details

Ontnippen

Levertijd

15-20 dagen

Betalingscondities

T/T

Levering vermogen

300 sets/maand

VERWANTE PRODUCTEN

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Vind de beste prijs

Customize PU Spiral Sand Washing Machinery

Vind de beste prijs

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Vind de beste prijs

Insutrial Use Rotary Screen Capacity 1-250t/h

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
