Name: Belt Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: B-type transportband
Price: 8,650.00 USD
Availability: InStock

Thuis > producten > Voedings- en transportmachine >

Belt Conveyor

industrial belt conveyor machine

heavy duty belt conveyor

material handling belt conveyor

Plaats van herkomst:

China

Merknaam:

hengyang

Certificering:

ISO9001

Modelnummer:

B-type transportband

Neem contact met ons op

Vraag een offerte

Productgegevens

Capaciteit:

50-700t/u

Voorwaarde:

Nieuw

OEM:

accepteren

Sollicitatie:

Transportmaterialen

Garantie:

12 maanden

Spanning:

Tot koper

Betaling en verzendvoorwaarden

Min. bestelaantal

Prijs

5000-12300USD/set

Verpakking Details

Ontnippen

Levertijd

15-20 dagen

Betalingscondities

T/T

Levering vermogen

300 sets/maand

VERWANTE PRODUCTEN

Chain Conveying Feeder

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

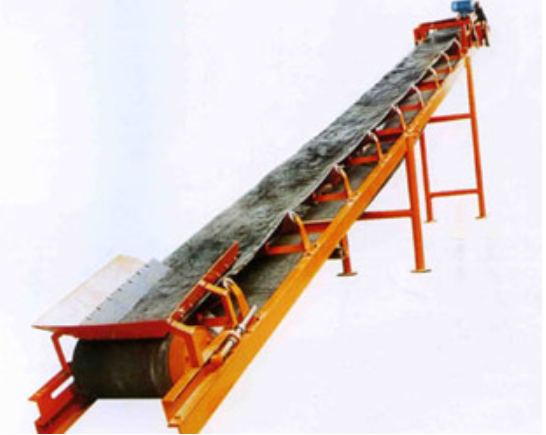

Belt Conveyor

Belt Conveyor is used to convey the loose and unit materials. All can be conveyed single or more machines ,according to the demands .As well as the conveyor system composition of the other conveyor equipments .That can meet all kinds of task .It is used in the scope that environment -45℃ to 46℃.the materials temperature less than 50℃.And it is widely used in mining ,metallurgy ,coal etc industries .

Working Principle Of Belt Conveyor:

When the Belt Conveyor is on operation ,through the friction between belt and transmission drum ,the belt then can move .From the loading point ,the materials is loading on the belt and then unloading from the unloading point.This can form the continuous logistics .Generally ,the materials are loading on the belt and then unloading from the transmission drum, as well as the special unloading equipment .

Characteristics Of Belt Conveyor:

Large delivery value ,simple structure ,convenient maintenance ,low cost and strong generality.

Technical Details:

Belt Width (mm)	Length(m) Power(kw)			Speed (m/s)	Production (t/h)
500	≤12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	≤12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	≤6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	≤105 5	10-207 5-11	20-40 11-22	1.3-2.0	435-853
1200	≤107 5	10-20 11	20-40 15-30	1.3-2.0	655-1284
